iMaster NCE-Fan Lite NMS installation guide
Huawei iMaster NCE-Fan Lite Network Management System (NMS) stands out as a robust solution designed for managing networks with up to 1000 equivalent network elements (NEs).
NCE offering a user-friendly interface and essential functionalities to manage small to medium-sized GPON networks effectively. this NCE FAN NMS support all model Huawei (R018 to above version) OLT , ONT and this NCE is web based NMS software.
Huawei iMaster NCE-Fan Lite NMS install Service:
I have below version iMaster NCE-FAN Lite (1K Manager Domain (private cloud)) NMS, which is (Un-official, you don’t get any support from Huawei), you can use it like U2000 Crack version. The NMS supports more than 1,000 OLTs/NE and 1,00,000 ONTs, with 22K instances of historical performance data, and allows 23 concurrent client logins.
Supported Huawei Devices
Support depends on the installed software version and license package.
- Huawei MA5800 series OLTs
- Huawei MA5600T or MA5680T series OLTs
- Huawei EA5800 platforms (where supported)
- Huawei MA5801 series OLTs
- Huawei HGXXXX & EGXXXX series ONTs
Note: OLT minimum Firmware version required R018 to support in NCE NMS.
Huawei NCE-FAN Lite NMS Version:

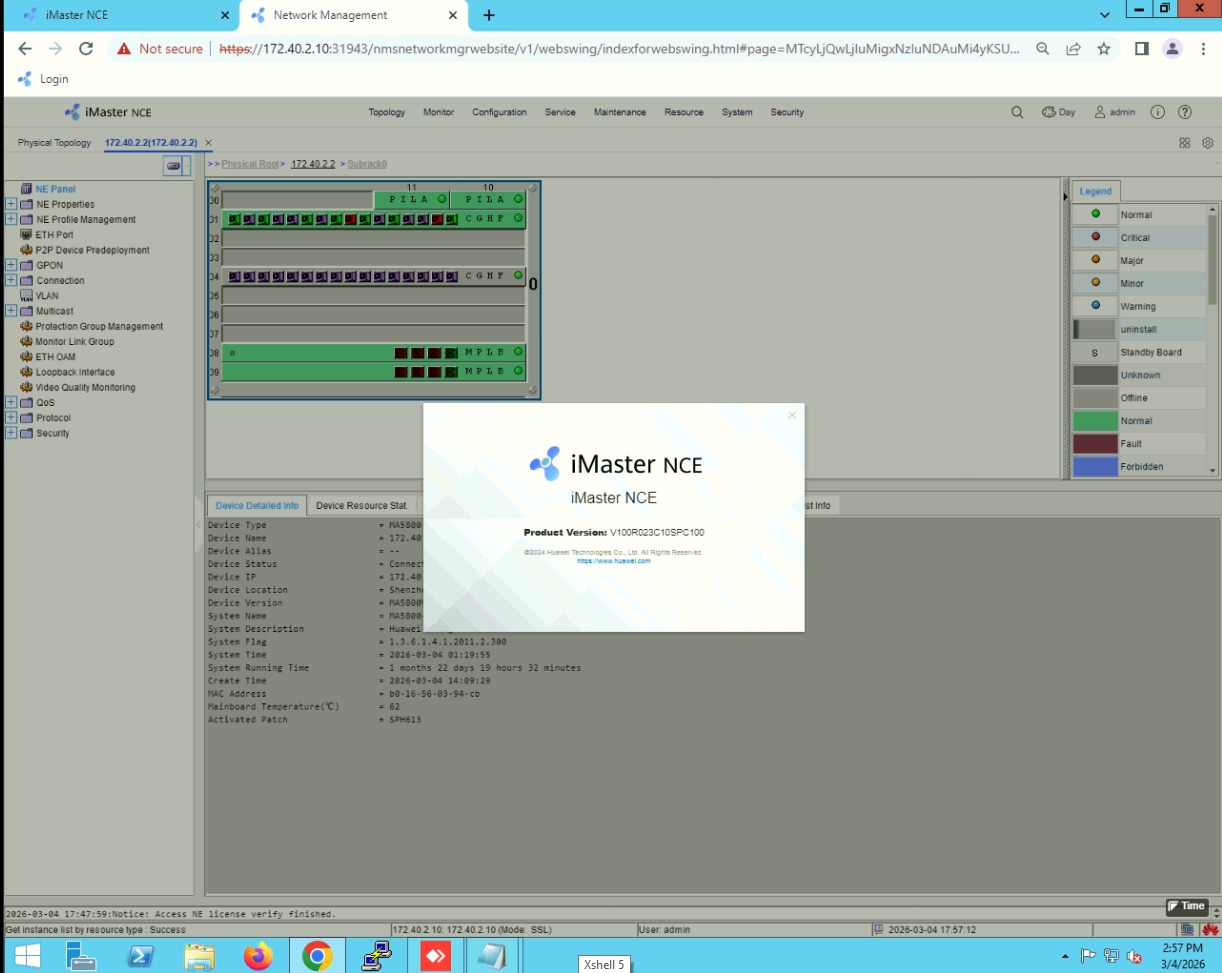

- V100R022C10SPC100 : NMS install price $1200 USD.

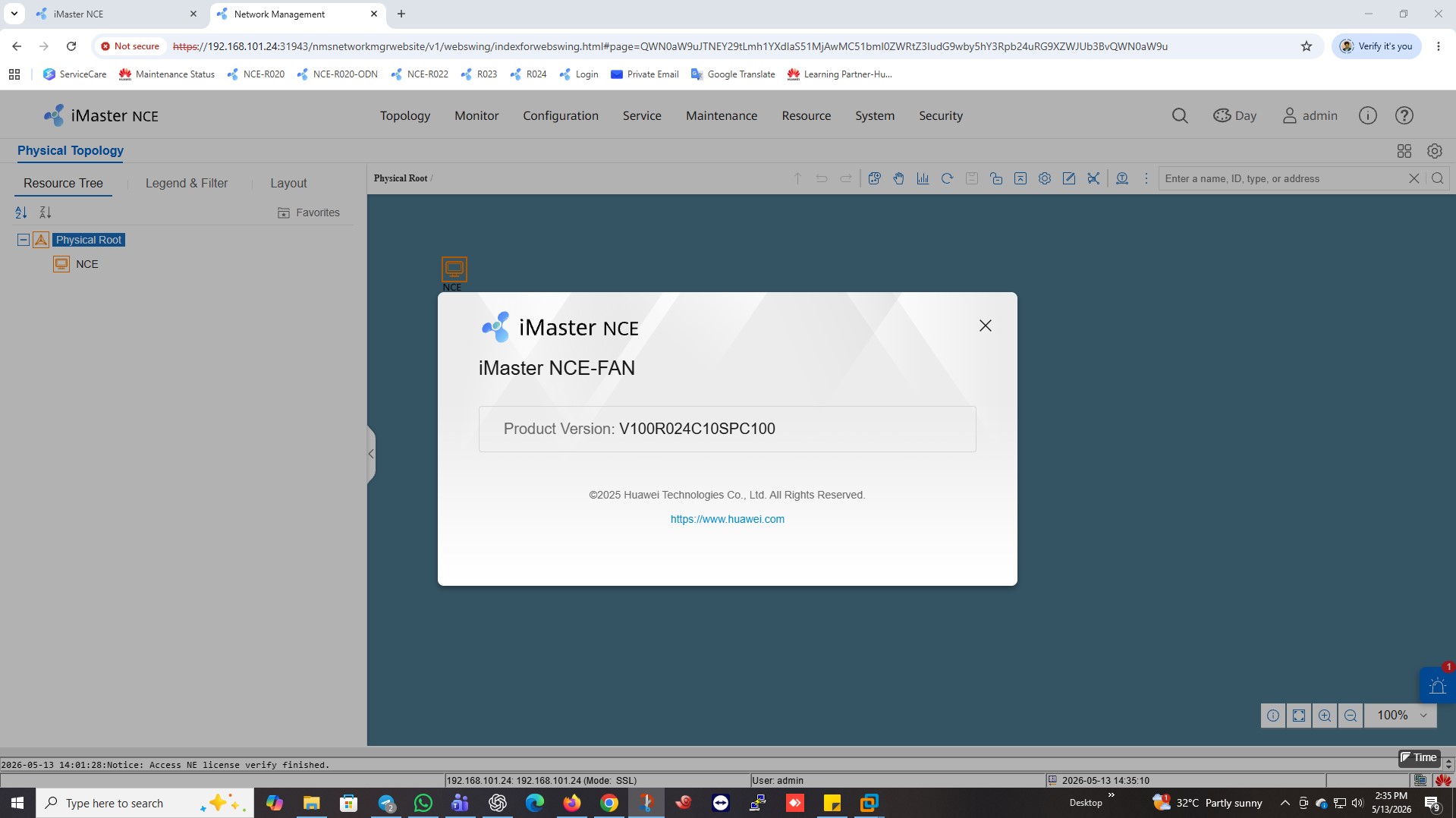

- V100R024C10SPC100 : NMS install price $1600 USD.
NCE Install Hardware requirement (Physical Server):
To install NCE-FAN Lite NMS i need dedicated physical server.
Which RAM 128GB , 20~24 core 2.0 GHz above Xeon processor, 1 TB NVMe SSD or multiple SAS/SATA HDDs with RAID 10. Also ensure 24/7 Power backup in Server pc.
- You need to install Windows 10/11 or Win Server 2012/2016R2 Standard English OS
with windows license activated in physical server. - I need Anydesk access main server. Then I will install VMware in that main server.
- To install NCE NMS within VM required 2 Private IP for server, one for main windows pc and another for NCE VM Euler OS Server .
- If you want install your existing VMware/proxmox then i need 2 VM (One for NCE Server, another for Client PC).
Huawei iMaster NCE NMS Install (existing VMware/proxmox)
Minimum Hardware & Software Requirements Comparison
1. NCE NMS Server Minimum Requirements (VM-1)
| SL | NCE Version | Deployment Type | RAM | CPU Cores | Architecture | Storage NVMe SSD | Operating System | NMS install Price |
| 1 | R022 | NCE-FAN 1K Lite Manager | 64 GB | 16 | x86 | 600 GB SSD | Euler OS | $1200 USD |
| 2 | R024 | NCE-FAN 1K Lite Manager | 64 GB | 16 | x86 | 600 GB SSD | Euler OS | $1600 USD |
| 3 | R024 | NCE (IP+T+FAN) 1K Lite Manager | 128 GB | 24 | x86 | 600 GB SSD | Euler OS | $1800 USD |
| 4 | R024 | NCE (IP+T+FAN) 6K Manager | 128 GB | 32 | x86 | 600 GB SSD | SUSE OS | $4000 USD |
| 5 | R024 | NCE-FAN 6K Manager + Controller | 384 GB | 96 | x86 | 1600 GB SSD | Euler OS | $4000 USD |
2. NCE Installation Client PC Requirements (VM-2)
| Parameter | Minimum Requirement |
|---|---|
| RAM | 8 GB |
| Processor | 6 Cores, 2.6 GHz or above |
| Architecture | x86 |
| Storage | 400 GB SSD/HDD |
| Operating System | Windows Server 2012 R2 / 2016 R2 Standard Edition or Windows 10 / 11 |
| Display Resolution | Minimum 1366 × 768 (Recommended: 1920 × 1080) |
| Web Browser | Google Chrome 113 or later (32-bit / 64-bit) |
3. Network Connectivity Requirements
| SL | Connectivity | Mandatory Requirements |
|---|---|---|
| 1 | OLT ↔ NCE Server | Bidirectional IP connectivity (Ping) without firewall |
| 2 | OLT ↔ Windows Client PC | Bidirectional IP connectivity (Ping) |
| 3 | Windows Client PC ↔ NCE Server | Bidirectional IP connectivity (Ping) |
| 4 | IP Addressing | Private IP addressing |
| 5 | Network Routing | Proper IP routing between all endpoints |
| 6 | NAT | NAT is not acceptable |
4. Important Deployment Notes
- Ensure bidirectional IP reachability between OLT, NCE Server, and Windows Client PC before installation.
- All devices must communicate using private IP addresses through proper IP routing.
- NAT-based connectivity is not acceptable for the deployment.
- Install the respective Huawei-customized Euler OS or SUSE OS according to the selected NCE deployment model.
- Ensure the Windows Client PC meets the specified browser and display resolution requirements.
Note: The above specifications represent the provided minimum deployment requirements. If want better service then need update hardware capacity.
Final hardware procurement should be validated against the corresponding Huawei NCE R022/R024 installation deployment scenario.
If anybody want to install please knock me below Teams/Telegram/Mail.
Teams: https://teams.live.com/l/invite/FEAtxStbcc4xZpYNQU
E-mail: shahed.cse06@gmail.com
Telegram: https://t.me/Shahed_Israr
Key Features of iMaster NCE-Fan Lite NMS:
• Automated Management and Control: It enables carriers to improve user experience with greater troubleshooting efficiency, overhauling the traditional complaint-driven approach to O&M.
• Intelligent Operations & Maintenance (O&M): Proactively identifies faults both on the network and in the home through data collection and verification, using data mining and AI for quick fault diagnosis.
• Network Quality Visualization: Supports visualization of E2E network topology, provides 24/7 playback of Key Performance Indicators (KPIs), and remotely locates and demarcates faults to improve troubleshooting efficiency.
• Automatic Service Provisioning: Features cloud-based authentication, plug-and-play policies, service-level APIs, remote software commissioning, and process orchestration capabilities for automatic configuration and deployment of devices.
• System and Common Functions: Includes system management, alarm management, user management, and log management to maintain the overall health and security of the network.
These features make the iMaster NCE-Fan Lite NMS a comprehensive solution for managing access networks efficiently and intelligently.
