SNMP MIB Huawei OLT ONT

SNMP MIB Huawei OLT ONT:

[boxads]

Today i will share some SNMP MIB and OID info for Huawei OLT ONT.

I did not practically do it, if anybody success please inform me or comments below of this post.

Example MIB audit team and OID of Linux:
1    snmpwalk -v 2c -c public 192.168.1.10 1.3.6.1.2.1.2.2.1.2

Actually with a list of OID:

The optical power of the ONU:
1    1.3.6.1.4.1.2011.6.128.1.1.2.51.1.4

The temperature of the boards:
1    hwMusaBoardTemperature 1.3.6.1.4.1.2011.2.6.7.1.1.2.1.10

Temperature slots:
1    hwSlotTemprature 1.3.6.1.4.1.2011.6.3.3.2.1.13

Download the processor board:
1    hwMusaBoardCpuRate 1.3.6.1.4.1.2011.2.6.7.1.1.2.1.5

Food:
1    hwMusaFramePower  1.3.6.1.4.1.2011.2.6.7.1.1.1.1.11

Interface description:
1    ifDescr 1.3.6.1.2.1.2.2.1.2

Interface Traffic:
1    ifInOctets 1.3.6.1.2.1.2.2.1.10
2    ifOutOctets 1.3.6.1.2.1.2.2.1.16

Slot Table:
1    hwSlotTable 1.3.6.1.4.1.2011.6.3.3.2

Status link GPON ports (Online – 1, Offline – 2):
1    hwGponDeviceOltControlStatus 1.3.6.1.4.1.2011.6.128.1.1.2.21.1.10
[bodyads]
Status vlan (up / down):
1    hwVlanInterfaceAdminStatus 1.3.6.1.4.1.2011.5.6.1.2.1.5

ONU Status (Online – 1, Offline – 2):
1    hwGponDeviceOntEthernetOnlineState 1.3.6.1.4.1.2011.6.128.1.1.2.62.1.22

Temperature ONU optics:
1    hwGponOntOpticalDdmTemperature 1.3.6.1.4.1.2011.6.128.1.1.2.51.1.1

Number mac address connected to ONU:
1    hwGponDeviceOntControlMacCount 1.3.6.1.4.1.2011.6.128.1.1.2.46.1.21

The distance to the ONU:
1    hwGponDeviceOntControlRanging 1.3.6.1.4.1.2011.6.128.1.1.2.46.1.20

Uptime OLT:
1    sysUpTime 1.3.6.1.2.1.1.3

The total number of SNMP packets to the OLT:
1    snmpInPkts 1.3.6.1.2.1.11.1
2    snmpOutPkts 1.3.6.1.2.1.11.2

Just a few OID:
1    hwMaxMacLearn 1.3.6.1.4.1.2011.5.14.1.4.1.6
2    hwMacExpire 1.3.6.1.4.1.2011.5.14.1.3
3    hwOpticsMDWaveLength 1.3.6.1.4.1.2011.5.14.6.1.1.15
4    hwOpticsMDVendorName 1.3.6.1.4.1.2011.5.14.6.1.1.11
5    hwRingCheckAdminStatus 1.3.6.1.4.1.2011.5.21.1.7
6    hwVlanInterfaceID 1.3.6.1.4.1.2011.5.6.1.2.1.1
7    hwVlanInterfaceTable 1.3.6.1.4.1.2011.5.6.1.2
8    hwVlanName 1.3.6.1.4.1.2011.5.6.1.1.1.2
9    icmpInEchos 1.3.6.1.2.1.5.8
10  ipAddrEntry 1.3.6.1.2.1.4.20.1

OLTRX SNMPv2-SMI :: enterprises.2011.6.128.1.1.2.51.1.6
ONURX SNMPv2-SMI :: enterprises.2011.6.128.1.1.2.51.1.4

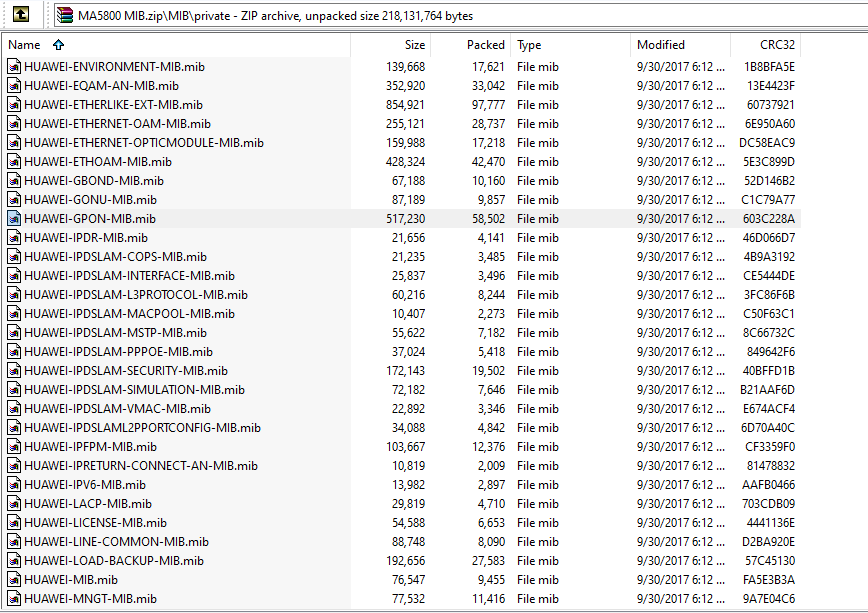

I have full library file, you need pay $30 USD for this full file.

Download MA5600TV800R013C00SPC105_MIB
